Robotics 101

It's More Than Parts

Robotics is built from mechanics, electronics, and code, but mastering it isn’t about collecting parts—it’s about learning these foundations in the right order.

1. How to Self-Study Robotics in the Right Order

Many people fail at learning robotics not because robotics is too difficult, but because they start in the wrong place. Robotics is a combination of multiple disciplines, and learning them in the wrong order creates confusion and frustration. A practical and sustainable learning path is mechanics first, then electronics, followed by programming, control, and finally AI. Mechanics comes first because robots exist in the physical world. You do not need advanced mechanical design or CAD skills at the beginning. What matters is understanding joints, links, degrees of freedom, torque, and how motion is physically generated. Without this foundation, software concepts feel abstract and disconnected. Electronics comes next. At this stage, you only need practical knowledge: how sensors connect to microcontrollers, how motors are driven, and how power is supplied safely. Robotics electronics is not about designing PCBs early on, but about understanding how signals flow between components. Programming should follow once you can visualize hardware behavior. Learning Python or C++ becomes much easier when you can see code directly affect movement. This is the point where robotics becomes rewarding, because software finally interacts with reality. Control theory and AI come later. Control teaches robots how to move accurately and stably. AI adds perception and decision-making. Starting with AI too early is a common mistake that leads to shallow understanding and eventual burnout. The key to self-studying robotics is not speed, but order. Build intuition first, intelligence later.

2. Python vs C++ for Robotics Beginners

One of the most common beginner questions in robotics is whether to learn Python or C++. The correct answer is not choosing one over the other, but choosing the right sequence. Python is ideal for beginners. Its syntax is simple, and it allows fast experimentation. Python is excellent for testing algorithms, processing sensor data, and building early robotics prototypes. Many robotics beginners gain confidence by seeing immediate results with Python. C++, however, dominates performance-critical robotics systems. Real-time control, embedded systems, and ROS-based applications often rely on C++. C++ gives developers control over memory, execution speed, and system behavior, which is essential in production environments. Beginners who start with C++ often struggle unnecessarily. The language complexity distracts from understanding robotics concepts. Starting with Python allows learners to focus on logic and system behavior. Transitioning to C++ later feels natural once robotics fundamentals are clear. In professional robotics development, both languages coexist. Python is often used for high-level logic and testing, while C++ handles low-level control and performance-critical tasks. Understanding both is a long-term advantage, but Python should come first.

3. ROS vs ROS2: What’s the Real Difference?

ROS (Robot Operating System) and ROS2 are often discussed as competing platforms, but their difference lies mainly in purpose and design philosophy. ROS was created for research and academic environments, while ROS2 was built with real-world deployment in mind. ROS excels in simplicity and learning resources. Its ecosystem is large, and tutorials are abundant. However, it lacks native support for real-time systems, security, and reliable communication across distributed robots. ROS2 addresses these limitations. It introduces DDS-based communication, real-time support, improved security, and better multi-robot scalability. These features make ROS2 suitable for industrial and commercial applications. The downside is complexity. ROS2 has a steeper learning curve, and its documentation often assumes prior ROS knowledge. Beginners frequently struggle with concepts like QoS and middleware configuration. A practical learning approach is to understand ROS concepts first, then apply them in ROS2. ROS teaches structure; ROS2 teaches robustness. Treating them as complementary rather than competing leads to better understanding and fewer frustrations.

4. SLAM Explained Simply

SLAM stands for Simultaneous Localization and Mapping. It allows a robot to build a map of an unknown environment while determining its own position within that map. The challenge of SLAM is not complexity, but uncertainty. Robots do not know where they are initially. Sensors provide noisy and incomplete information. SLAM algorithms continuously estimate position while updating the map, correcting errors over time. Many beginners believe SLAM is purely a math problem. In reality, understanding the concept is more important than understanding the equations. SLAM combines sensor data, motion estimation, and probabilistic reasoning. Modern SLAM systems use LiDAR, cameras, IMUs, or combinations of sensors. Sensor fusion improves accuracy but increases complexity. For learning purposes, starting with basic 2D LiDAR SLAM provides the clearest intuition. SLAM is fundamental to autonomous robots because navigation without maps is unreliable. Once the concept is understood, the mathematics becomes meaningful instead of intimidating.

5. Camera vs LiDAR vs Radar in Robotics

No single sensor is perfect for robotics. Cameras, LiDAR, and radar each solve different problems and introduce different limitations. Cameras provide rich visual information. They are inexpensive and useful for object recognition and classification. However, cameras depend heavily on lighting conditions and struggle in darkness or glare. LiDAR provides accurate depth measurements and reliable geometry. It works well in low-light environments and is widely used for mapping and navigation. The main disadvantages are cost and mechanical complexity. Radar excels in harsh conditions such as rain, fog, and dust. It has long range and strong robustness, but its spatial resolution is low compared to cameras and LiDAR. Real robots rarely rely on a single sensor. Sensor fusion combines strengths while compensating for weaknesses. Choosing sensors is not about specifications alone, but about understanding the operating environment and task requirements.

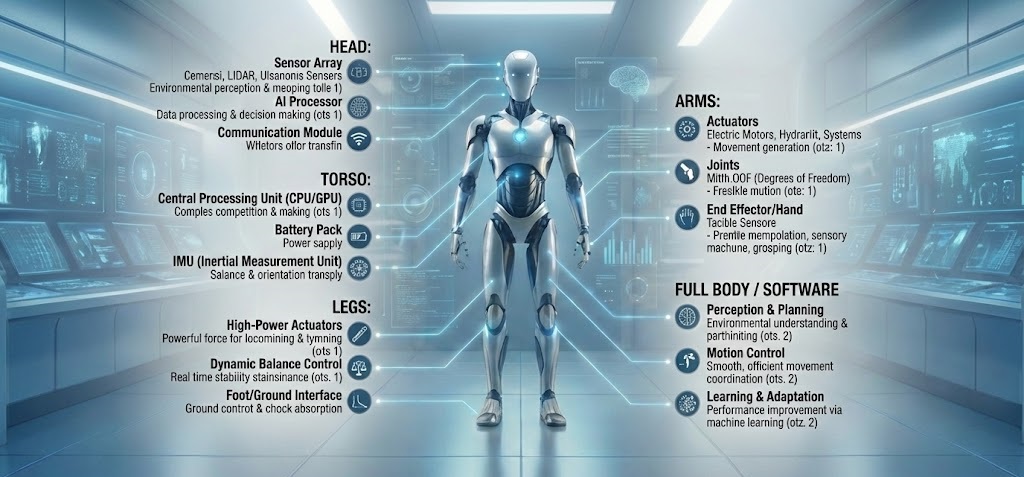

❶ Robot Mechanics: The Body, Muscles & Secrets

Robots are not just metal statues. They move, lift, and dance! Let's look inside their metal bodies.

Imagine your own body

To move your arm, you need three things working together:
1. Bones to keep your arm straight and hard.
2. Joints (like your elbow) to bend.
3. Muscles to pull the bones up and down.
A robot is exactly the same! It just uses metal instead of bone, and motors instead of muscle.

1. Links & Materials - The Skeleton

The hard parts of a robot are called Links. But what are they made of? If a robot is too heavy, the motors cannot move it. If it is too light, it might break!

Aluminum: The most popular choice. It is strong like steel but much lighter.
Plastic (3D Printed): Good for small robots and toys. It is cheap and easy to make.
Carbon Fiber: Super expensive! It is extremely light and strong. Used in advanced running robots.

2. The Joints (How it bends)

Without joints, a robot would be a stiff statue. Joints connect the links and allow movement. Engineers choose different joints depending on the job.

① Revolute Joint (Spin)

Think of a door hinge or your knee. It rotates around one point. Most industrial robot arms are made of 6 revolute joints connected together.

② Prismatic Joint (Slide)

Think of a drawer opening, or a telescope extending. The link slides in a straight line. This is great for elevators or precision machines.

3. Actuators - The Muscles

Links and joints cannot move by themselves. They need power! In robotics, we call the "muscle" an Actuator. Actuators are the components responsible for moving and controlling a mechanism or system. They take an energy source (usually electricity, but sometimes air or liquid pressure) and convert it into physical force. There are three main types of robot muscles:

DC Motors: DC motors provide continuous, high-speed rotation for wheels and fans. Stepper motors move in precise "steps," making them ideal for 3D printers and high-accuracy movements. Used in RC cars and drones.
Servo Motors: These are "smart" motors equipped with built-in sensors and feedback control. Instead of just spinning, you can command them to stay at a precise angle (e.g., "Hold at 45 degrees"). They are the primary choice for robot arm joints and humanoid limb movements. You can tell them: "Go to 90 degrees and stop!" Perfect for robot arms.
Hydraulics & Pneumatic Actuators (The Heavy Lifters): Hydraulics use pressurized fluid to generate immense force, while Pneumatics use compressed air for rapid, jerky movements. These are used in heavy industrial robots that need to lift car frames or in high-speed sorting machines.

4. Gears - The Secret Power

Here is a secret: Electric motors are actually very weak! They spin super fast, but they have no strength (Torque). If you connect a motor directly to a robot arm, it cannot lift anything.

The Bicycle Analogy

Think about riding a bike up a steep hill. It's hard! So you change the Gears. You pedal faster, but the wheels turn slower and with more power.
Robots use Gearboxes to trade speed for super-strength!

5. End Effectors - The Hands

Robots don't always have human-like hands. The tool attached to the end of the robot arm is called an End Effector. Robots can change their hands like you change tools in a video game!

(Structure of industrial robot arm)

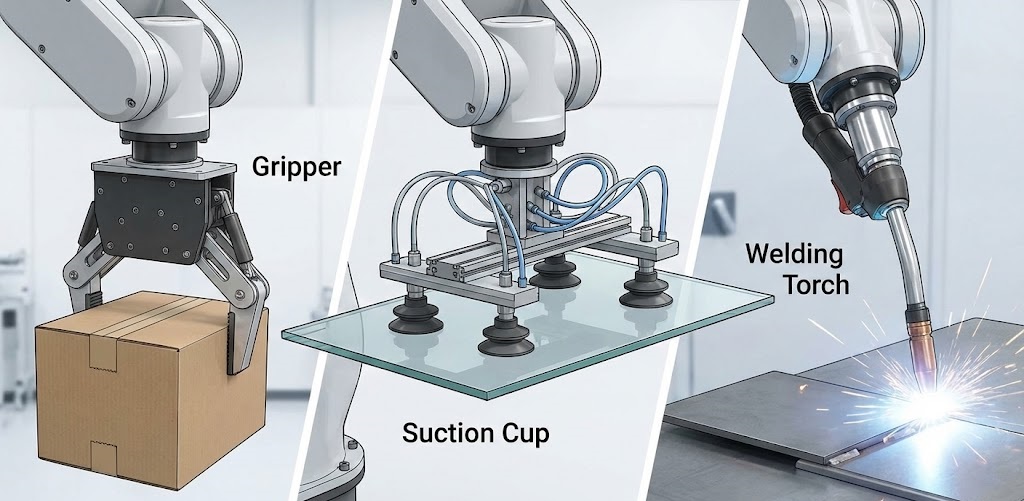

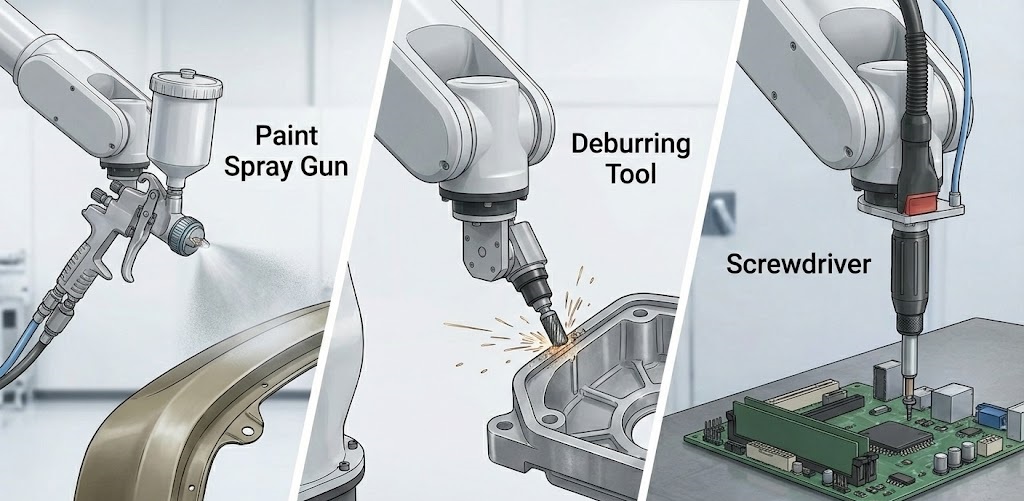

(Standard End Effectors)

(Advanced Tools)

Mechanics: Technical Deep Dive

DoF defines the configuration parameters of a robot. A 6-DoF arm mimics a human arm's range. Forward Kinematics finds position from angles; Inverse Kinematics calculates the angles needed to reach a specific target point.

Actuators are chosen based on Torque (Force × Distance). Aluminum provides a high strength-to-weight ratio, while carbon fiber is used for high-performance rigidity.

❷ Electronics: The Nervous System & Senses

If Mechanics is the body, Electronics is the life. Without it, a robot is just a statue.

The Human Body Analogy

Electronics works just like your body:
1. Battery = The Heart (Pumps energy/blood)
2. Wires = Nerves (Send signals)
3. Microcontroller = The Brain (Decides what to do)
4. Sensors = Eyes, Ears, and Skin (Feel the world)

1. Microcontrollers - The Brain

A robot needs a brain to process information. Depending on the complexity of the task, we choose between two types of "brains":

Arduino (The Reflex Brain)

Arduino (The Reflex Brain): This is a Microcontroller (MCU). It is a simple, rugged chip built for one purpose: immediate action. Just like your body pulls your hand away from a fire before you even think about it, Arduino handles split-second reactions like stopping a motor when a sensor detects an obstacle.

Raspberry Pi (The Thinking Brain)

Raspberry Pi (The Thinking Brain): This is a Single Board Computer (SBC). It is a full computer that can run software, connect to the internet, and "see" using AI. It is used when the robot needs to perform complex tasks like recognizing a face or planning a path through a room.

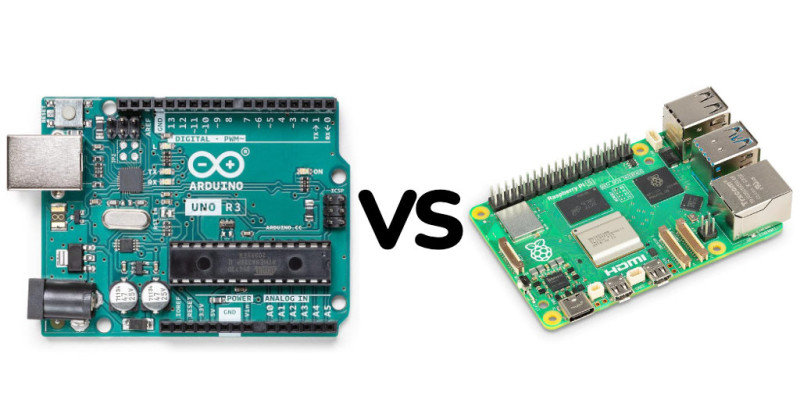

Arduino Uno VS. Raspberry Pi 5

www.codeduino.com

2. Sensors - The Senses

How does a robot know where it is? It uses Sensors to convert the physical world into electrical signals.

	Lidar & Ultrasonic 🔔 Principle: It calculates the precise distance to objects by measuring the "Time of Flight" (ToF) of light or sound waves as they bounce back to the sensor. 🔔 Application: Essential for autonomous vehicles to navigate safely and for robot vacuums to generate high-resolution maps of indoor environments.
	IMU (Inertial Measurement Unit, Gyroscope) 🔔 Principle: Combines data from accelerometers and gyroscopes to track the robot's orientation, rotational velocity, and gravitational forces in real-time. 🔔 Application: Allows drones to maintain perfect horizontal stability against wind and enables bipedal robots to balance while walking on uneven terrain.(Pitch/Roll/Yaw).
	Camera (Visual Perception) 🔔 Principle: Captures light through a lens to create digital pixel data, which is then processed by deep learning algorithms to identify and classify objects. 🔔 Application: Powerfully used in industrial quality control to detect defects and in security systems for facial recognition and biometric access control.

3. Power & Battery - The Heart

Robots are hungry! They usually run on LiPo (Lithium Polymer) batteries, which are powerful but dangerous if treated badly.

Engineer's Joke: The Magic Smoke
Electronics run on "Magic Smoke" trapped inside the chips.
If you connect the wires wrong (Short Circuit), the smoke escapes, and the chip stops working!
(Lesson: Never let the magic smoke out! Check your wiring.)

Future Tech: Next-Gen Batteries (2026 Trends)

1. Solid-State Batteries (The Dream Battery):
Unlike liquid LiPo, they utilize a solid electrolyte. They represent the ultimate safety standard—non-flammable even if punctured—and offer ultra-high energy density, making them perfect for humanoids.
2. LFP (Lithium Iron Phosphate):
The workhorse for service robots. While slightly heavier, they are extremely safe and offer a lifespan 5x longer than standard batteries (3,000+ charge cycles).
3. Sodium-Ion Batteries:
The winter specialist. Instead of expensive lithium, they use sodium (salt). They perform perfectly even in freezing temperatures (-20°C), making them ideal for outdoor delivery robots.

4. Motor Drivers - The Translator

The "Brain" (Microcontroller) is smart but weak—it usually runs on just 5 Volts. The "Muscles" (Motors) are strong but dumb—they need 12V, 24V, or even more. If you connect a motor directly to the brain, the brain will burn out! 🔥

We use a chip called a Motor Driver. It acts as a gateway. It listens to the brain's weak whispers (signals) and releases strong power from the battery to the motors.

H-Bridge (Direction)

How does a robot move backward? The driver uses a circuit called an H-Bridge. It works like swapping the battery wires instantly. This reverses the flow of electricity, making the motor spin the other way.

PWM (Speed)

How do we go slow? We don't lower the voltage. We use PWM (Pulse Width Modulation). The driver turns the power ON and OFF thousands of times per second. More "OFF" time = Slower motor.

For Advanced Robots: ESC
For drones and high-speed robot dogs, we use a special driver called an ESC (Electronic Speed Controller). It controls powerful "Brushless Motors" precisely without friction.

❸ Programming: The Recipe for Intelligence

Programming is writing a detailed recipe (Algorithm) for the robot to follow.

The Cooking Analogy

Imagine teaching a robot to make a sandwich. You can't just say "Make food." You must be exact:
1. Pick up bread.
2. Put ham on bread.
3. Close bread.
Programming is just writing a detailed recipe (Algorithm) for the robot to follow!

1. Sense-Think-Act - The Never-Ending Loop

Humans sleep, but robots stay awake waiting for orders. Almost every robot runs on a giant circle called the Control Loop. It repeats this 100 times per second!

1. SENSE
"Is there a wall?"

2. THINK
"If wall, turn left!"

3. ACT
(Spin Motors)

2. Robot Languages (Python vs C++)

Python (The Easy One)

It reads like simple English. Great for Artificial Intelligence (AI) and beginners.
Example: robot.move_forward()

C++ (The Fast One)

It is harder to write but runs extremely fast. Used for controlling motors and self-driving cars where speed matters.

3. Logic (If, Then, Else)

Robots are logical. They make decisions using "If Statements". It is a simple branching path.

                    if (battery < 10%) {

                       go_to_charger();

                    } else {

                       keep_cleaning();

                    }

(Translation: "If you are hungry, go eat. Otherwise, keep working!")

History Lesson: Why "Bugs"?
In 1947, a computer pioneer named Grace Hopper found a real moth stuck inside a computer relay, causing it to fail. It was the world's first literal computer bug!

Programming: Technical Deep Dive

PID Control (Proportional-Integral-Derivative) ensures smooth movement by minimizing errors. Finite State Machines (FSM) are used to manage complex behaviors like 'Search', 'Grab', and 'Charge'.

❹ AI & Perception: The Robot's Mind

AI is the ability to Learn and Understand.

The Toddler Analogy

How does a baby learn what an "Apple" is? You don't explain the math of a circle.
You just show them an apple 100 times and say "Apple!"
AI (Artificial Intelligence) works the same way. We show the robot 10,000 photos until it learns on its own.

1. Seeing vs. Understanding (Perception)

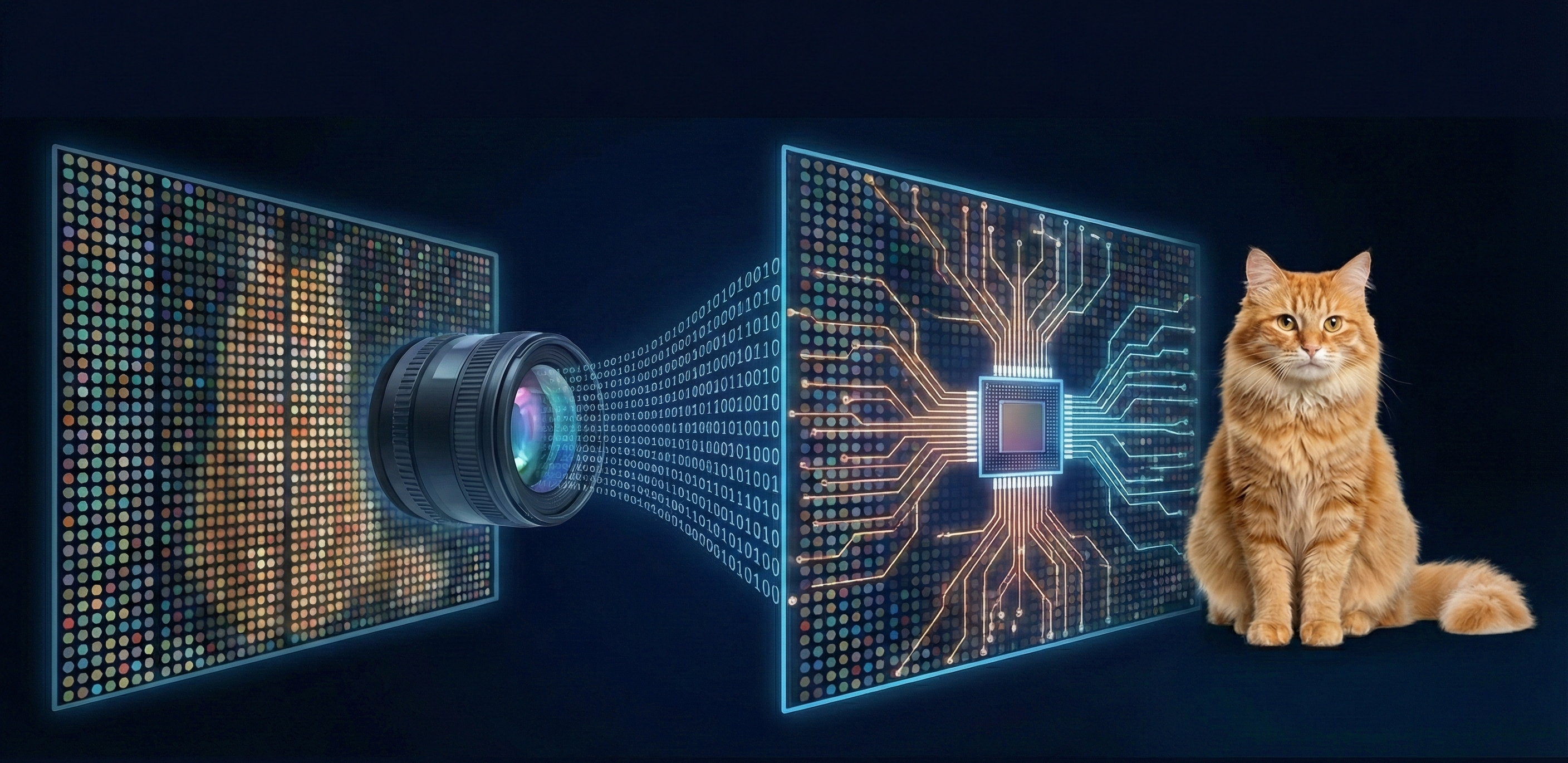

A camera is just a sensor. It only sees colored dots (pixels). Perception is the ability to look at those dots and say, "Hey! That is a cat!"

(Modern robots use cameras and AI to recognize human faces)

2. The Artificial Brain (Neural Networks)

Traditional code follows rules ("If A, then B"). But AI uses Neural Networks. These are computer programs written to imitate the neurons in a human brain.

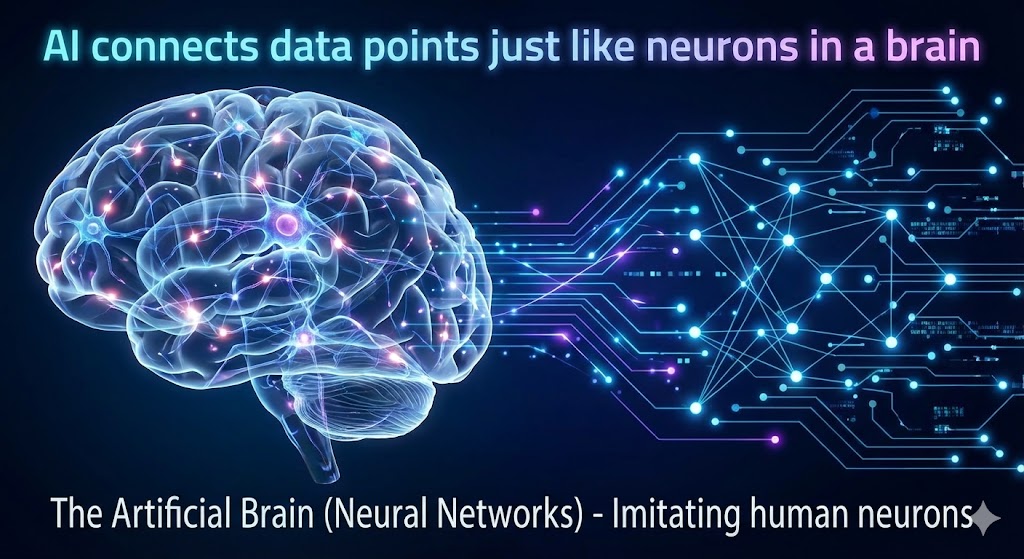

(AI connects data points just like neurons in a brain)

Fun Fact: AI vs Humans
In 2016, an AI named AlphaGo defeated the world champion of "Go" (Baduk). The AI made moves that no human had ever thought of in 3,000 years of history!

AI & Perception: Technical Deep Dive

Convolutional Neural Networks (CNNs) allow robots to recognize patterns in images. Reinforcement Learning (RL) enables robots to learn complex tasks like walking through a reward-based trial-and-error process.

❺ ROS 2: The Robot Operating System

The Manager that makes all parts work together.

The Manager Analogy

Imagine a football team. If every player runs randomly, they lose. They need a Manager.
ROS is that manager. It helps the Camera, Wheels, and Arm talk to each other perfectly.

1. Nodes - The Workers

In ROS 2, a " Node" is a small, independent program responsible for one specific task. Instead of having one giant, complex program that is hard to fix, ROS 2 breaks the robot's brain into a team of specialized workers. Why Use Many Nodes?: This modular structure is great for safety and troubleshooting. If the "Camera Node" crashes, the "Wheels Node" can still function and safely stop the robot. This prevents the entire system from failing due to one small error. One node controls the wheels, another reads the camera. They talk to each other over a network.

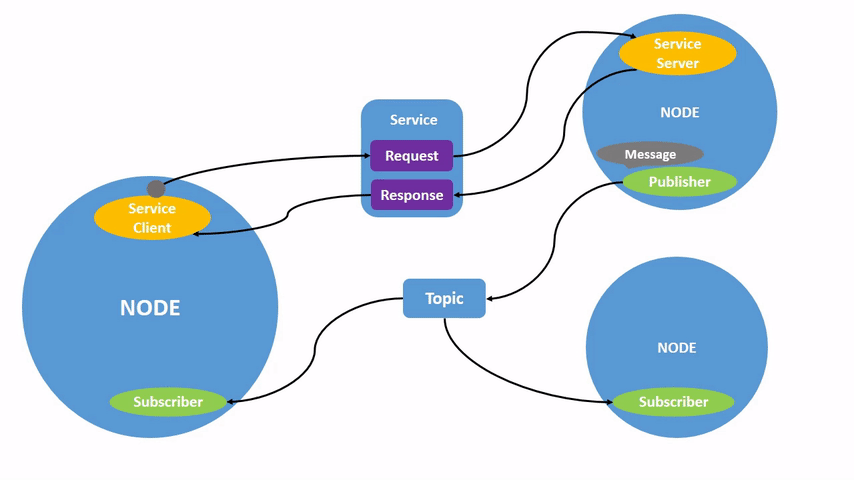

(Nodes communicate like a complex network)

2. Topics & Services - Communication

Topics: Continuous Data Streaming

Topics use a Publish/Subscribe model, similar to a radio broadcast. A sensor node "publishes" a constant stream of data, and any node interested in that data "subscribes" to the channel.
Example: A Lidar node constantly streaming 360-degree scan data for obstacle avoidance.

Services: On-Demand Interaction

Services follow a Request/Response model. It is like ordering at a restaurant; a node sends a specific request and waits for a response. This is used for one-time tasks rather than continuous data.
Example: Commanding a robot to "Save Current Map" or "Take a Snapshot" only when requested.

3. Gazebo - Simulation

The Digital Twin Concept: Gazebo is a powerful 3D physics simulator that creates a "Digital Twin" of your robot. It accurately mimics real-world physics, including gravity, friction, and lighting. This allows engineers to test their algorithms in a perfectly controlled environment before touching a single piece of hardware. * Safe Failure & Rapid Iteration: In the real world, a coding mistake could lead to a catastrophic crash, destroying expensive sensors and motors. In Gazebo, a crash costs nothing. You can "fail fast" and iterate your code thousands of times, refining your robot's AI until it is flawless and ready for reality. * Multi-Robot Testing: Gazebo enables you to simulate entire fleets of robots working together. You can create complex scenarios, such as a swarm of drones or a team of warehouse robots, to see how they interact and communicate without needing a massive physical space or a multi-million dollar budget.

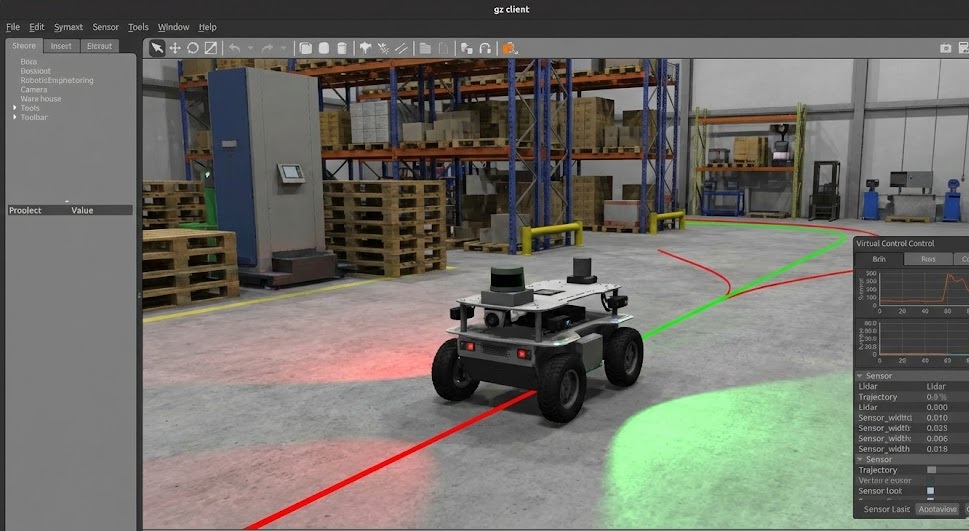

(Testing a robot in the Gazebo Simulator)

ROS 2: Technical Deep Dive

ROS 2 uses DDS (Data Distribution Service) as its middleware to ensure secure, real-time communication between nodes. This architecture supports Digital Twins by linking physical hardware with Gazebo simulations.

How It All Connects

A robot is more than the sum of its parts; it is a perfectly synchronized system.

Mechanics & Electronics: The physical body gets its nervous system. Sensors are mounted on links, and actuators move the joints.
Electronics & Programming: The hardware finds its voice. Code interprets electrical signals from sensors and sends precise commands to motor drivers.
Programming & AI: The logic becomes wisdom. Simple 'if-else' rules are enhanced by neural networks, allowing the robot to learn from its environment.
ROS 2: The ultimate conductor. It ensures that the camera (AI), the brain (Programming), and the muscles (Mechanics) all communicate in perfect harmony.

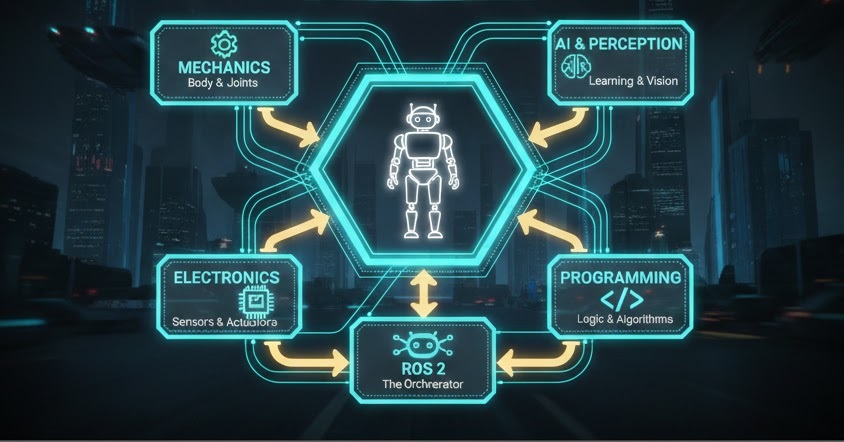

(Diagram: The seamless integration of the 5 core robotics pillars)
